Model/Software In the Loop Simulations
Accelerating Control System Development Through Virtual Validation
From Algorithms to Production-Ready Software
Modern vehicles rely heavily on sophisticated control algorithms to manage powertrain systems, vehicle dynamics, safety functions, electrification, and autonomous features. Developing these systems efficiently requires early validation, rapid iteration, and robust testing long before hardware becomes available.
Model-in-the-Loop (MIL) and Software-in-the-Loop (SIL) simulations provide a virtual development environment where control strategies and embedded software can be designed, tested, optimized, and validated throughout the development lifecycle.
Our simulation-driven workflow helps organizations reduce development time, improve software quality, and achieve faster deployment of reliable control systems.
What is Model-in-the-Loop (MIL) Simulation?

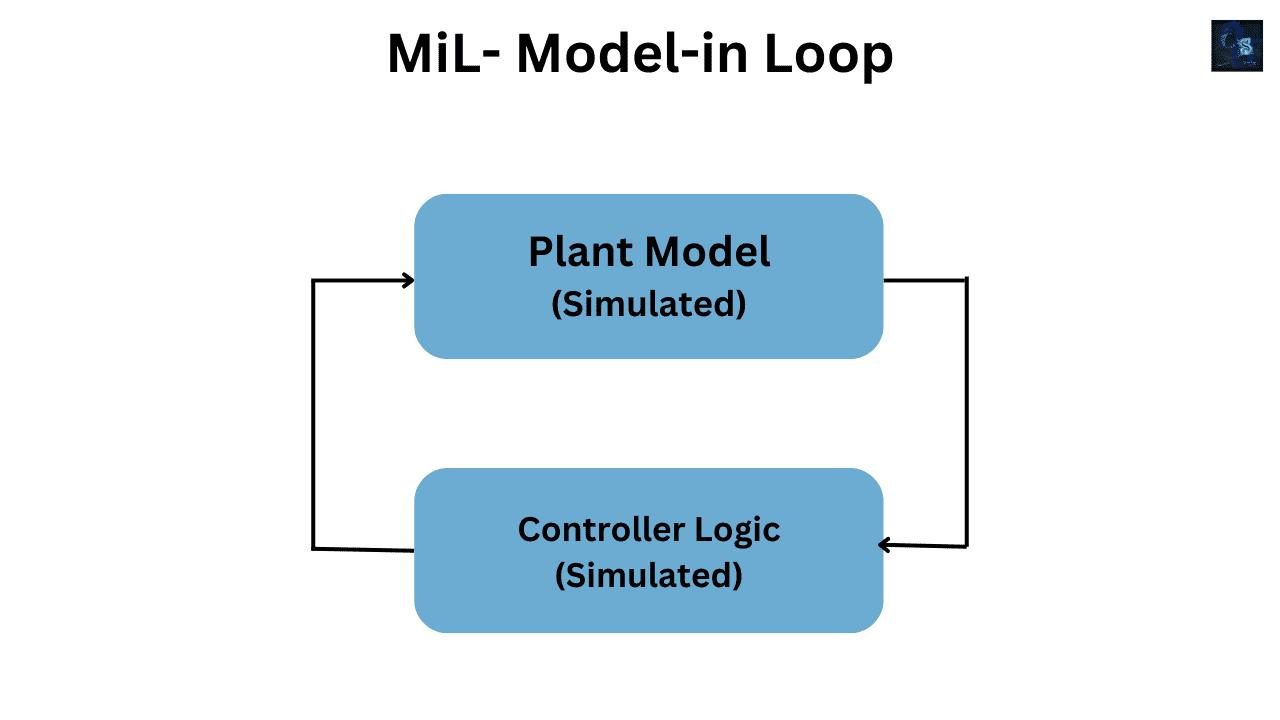

Model-in-the-Loop (MIL) is the earliest stage of control system validation, where both the plant model (vehicle, powertrain, or system) and the controller are represented as mathematical models within a simulation environment.
In MIL simulation, engineers can:
- Develop control algorithms rapidly
- Validate control logic before software implementation
- Evaluate system behaviour under various operating conditions
- Optimize controller parameters
- Perform fault and edge-case testing safely
What is Software-in-the-Loop (SIL) Simulation?

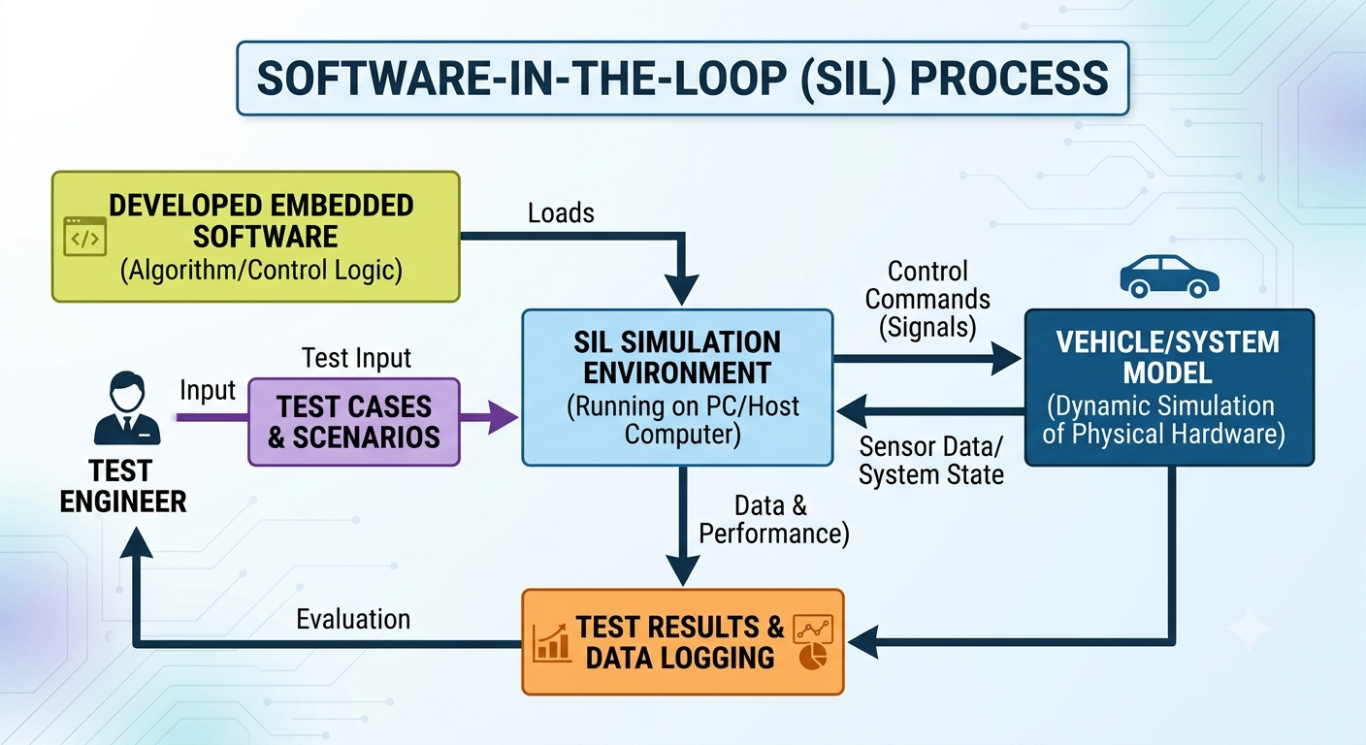

Software-in-the-Loop (SIL) is the next stage of virtual validation, where the actual production or auto-generated embedded software is executed against a simulated plant model.
SIL simulation allows engineers to:
- Verify software implementation accuracy
- Validate generated C/C++ code
- Compare software behavior with MIL results
- Identify integration issues early
- Measure execution performance and robustness
Why MIL & SIL Simulation Matter
- Faster Development Cycles
- Validate control strategies before hardware is available.
- Improved Software Quality
- Detect logic and implementation issues early.
- Reduced Development Cost
- Minimize expensive hardware iterations and testing.
- Lower Project Risk
- Identify failures before integration into physical systems.
- Higher System Reliability
- Verify performance across thousands of virtual scenarios.
Key Applications
Vehicle Dynamics Control
- Electronic Stability Control (ESC)
- Anti-lock Braking Systems (ABS)
- Torque Vectoring
- Active Suspension Control
- Steering Assist Systems
Fault Injection & Robustness Testing
- Sensor failure simulation
- Actuator fault analysis
- Communication error testing
- Boundary condition evaluation
- Safety mechanism verification

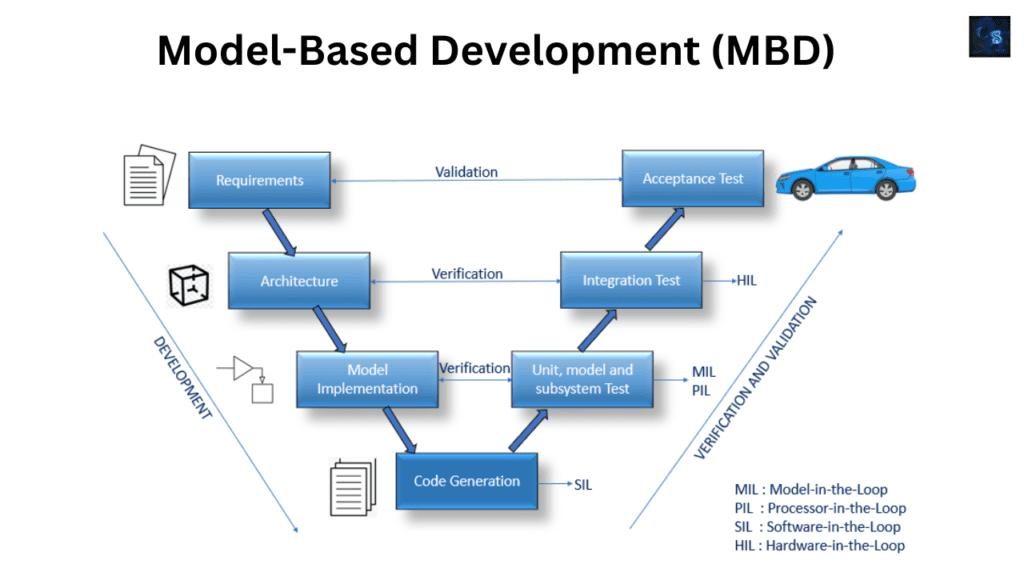

MIL & SIL Workflow
Industries We Support
- Passenger Vehicles
- Electric Vehicles (EVs)
- Hybrid Electric Vehicles (HEVs)
- Commercial Vehicles
- Off-Highway Equipment
- Autonomous Mobility Platforms
- Motorsport Applications
- Industrial Control Systems
Building Reliable Software Before Hardware Exists
Model-in-the-Loop and Software-in-the-Loop simulations are foundational technologies for modern model-based development. They enable organizations to create robust, efficient, and production-ready control systems with greater confidence and significantly lower development risk.
From control algorithm design to production software validation, we help transform complex system behaviour into reliable, high-performance embedded solutions.
